Product Code: WB1-WB-TR1-ALP


Please note: This item will incur an additional freight charge


Key Features

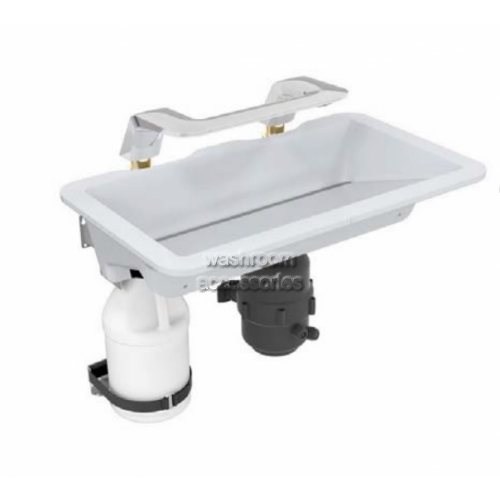

All-in-One chrome-plated cast alloy WashBar includes touch-free soap, water and hand dryer
Surface Mounted
Pair the WashBar with Terreon Undermount Basin with any countertop material
WashBar technology intuitively guides users and eliminates simultaneous activations
Undermount basin and drain engineered to evacuate water and dissipate air flow
WashBar and basin system comes with drain assembly and plumbing connections
Allows users to use soap, water and hand dryer without leaving the hand washing station
Handles washroom traffic quickly and economically while providing each user with personal space


PRODUCT DATA

Specifications:

Non-porous single piece cast-formed Terreon basin
Designed to accommodate one user at a time
Weight: 35kg
Basin colour: Alpine White
WashBar finish: Polished Chrome

Please note: this plumbing fixture is designed for hand washing only. It is not intended to dispense water for human consumption through drinking or for preparation of food or beverages

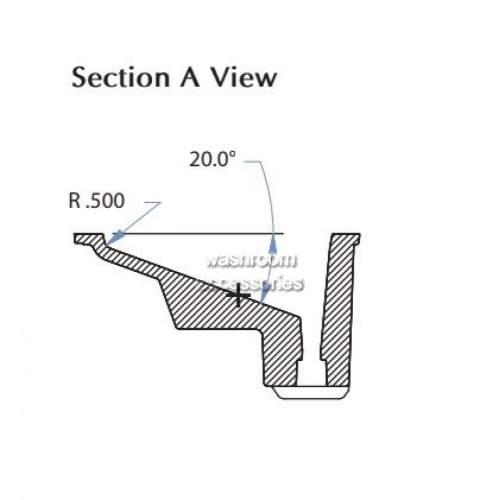

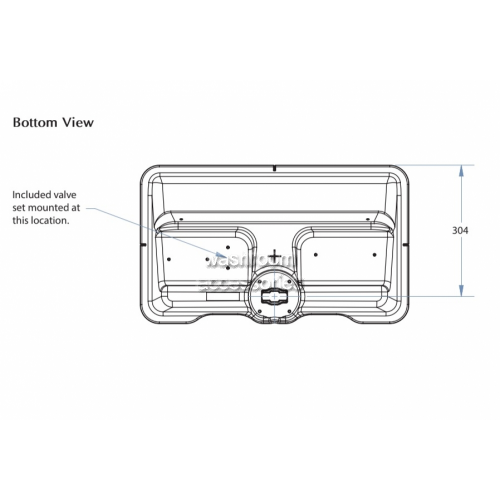

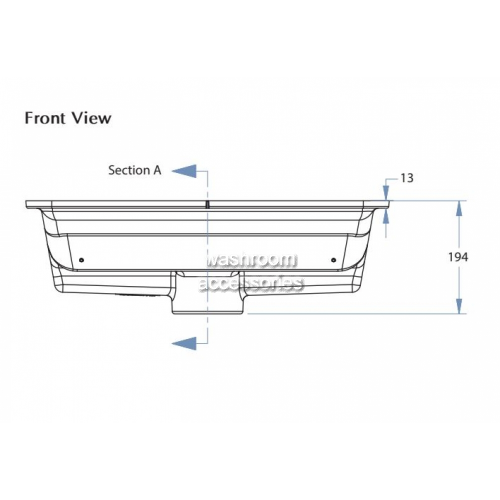

Undermount Basin:

Designed to direct water to a trench drain and features a 300 series stainless steel drain cap
The basin and drain cap work together to evacuate water and dissipate airflow to prevent splashing on the user or floor.
The basin is constructed of Terreon, a densified solid surface material composed of bio-based resin.
Terreon is resistant to chemicals,stains, burns and impact.
Surface damage can be easily repaired with everyday cleaners or fine grit abrasives.
Terreon is GREENGUARD certified as low-emitting material.
Undermount basin is secured to countertop via mounting clips (included as standard) and silicone sealant (provided by others). Clip locations are identified in installation instructions.


Wash Bar:

All-in-one chrome plated cast metal - polished chrome finish
Includes touch-free soap, water and hand dryer
Load tested to 227kgs
WashBar is secured to the basin with two anti-rotational shanks
Blue LED lights help to guide users and indicate three functions
LED light will change from blue to green to signify the the function is in use
Each function is easily identified by the corresponding icon on the WashBar's top surface

Sensors are programmed to eliminate simultaneous activation of nearby functions
Each sensor includes a turn-off delay of 1-2 seconds to aid in a smooth, controlled hand washing and drying operation
Smart technology allows the facilities manager or maintenance staff to clean and configure with ease

Cleaning mode: WashBar has an activation feature to put the unit into cleaning mode to allow for easy cleaning without activating the functions
Configurations mode: to identify how many cycles are on the soap, sensor tap and dryer. This mode also allows for dryer speed adjustment at low, medium and high levels


Soap Dispensers:

The soap dispenser is located on the left side of the WashBar
Foam soap dispenser - compatible with most bulk soaps
For optimum operation and performance, the recommended soap is the Bradley AQF6011 Aqua Foam Soap
Soap system accommodates up to a 3.78 Litre container to reduce the number of soap replacements.
When the LED light above the soap function turns to solid red, simply check the level and replace the soap container with a full container if necessary.
The soap system includes an adapter to fit many 3.78 litre soap containers available on the market.


Sensor Tap:

Located in the centre of the WashBar and has a spray angle of approximately 17 degrees off the vertical
PCA silicone tip, non-aerated spray pattern
Maximum run time is 11 seconds
Automatic 5 second purge within 24 hours of the last use
Recommended operating range is 137.89 - 551.58 kpa


Sensor Tap:

Located in the centre of the WashBar and has a spray angle of approximately 17 degrees off the vertical
1.3 Lpm PCA silicone tip, non-aerated spray pattern
Maximum run time is 11 seconds
Automatic 5 second purge within 24 hours of the last use
Recommended operating range is 137.89 - 551.58 kpa


Electrical:

Total rated power of each WashBar station is 1200W
Each WashBar is powered by one 12VDC power supply that plugs directly into its dryer or the electrical outlet
A properly grounded, dedicated 120VAC, 15A GFCI minimum outlet must be provided and must be located no more than 1.2 metres from the installation of the dryer assembly
One duplex outlet is required per station to power the WashBar and dryer


Drain Cap:

Terreon undermount comes complete with 300 series stainless steel trench drain cap and drain tailpiece.



Code	Size	Dimensions	Weight	Colours

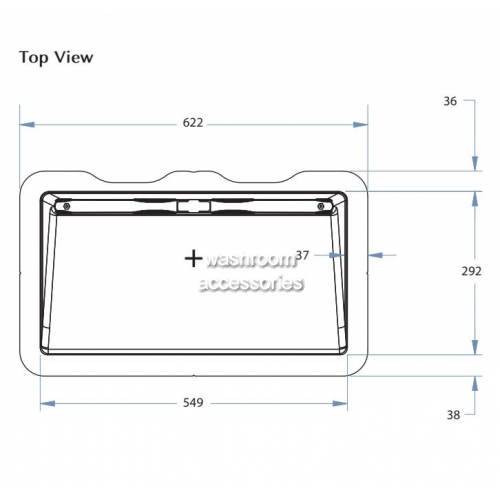

WB1-WB-TR1-ALP	622mm W		35.00 (kgs)	Alpine White
