JD MACDONALD

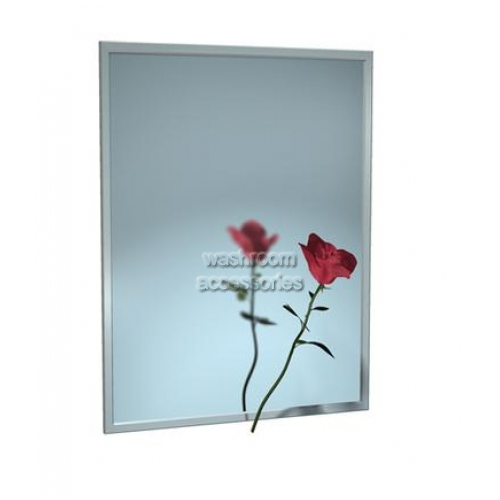

JD MACDONALD 10-0620-V CHANNEL FRAME GLASS MIRROR

Channel Framed

Associated Categories

Product Information

Item numbers:

10-0620-1830 : 460mm W x 760mm H
10-0620-1836 : 460mm W x 910mm H
10-0620-2436 : 610mm W x 910mm H


Key Features of the JD Macdonald 0620V Channel Frame Mirror:

* Frame fabricated of grade 304 stainless steel
* Channel is a one piece roll formed member that encases mirror and backing revealing a tight mitered corner
* Vinyl backing
* Flower not included


SPECIFICATION
Channel Framed Mirror shall have frame fabricated of alloy 18-8 stainless steel, grade 304, 20 gauge with mitred corners. Mirror glazing shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be spot welded into H hanger and supplied with all required mounting hardware. Mirror shall be secured to lower bracket with a locking screw.


MATERIALS
Frame: alloy 18-8 stainless steel, grade 304, 20 gauge. Unitized all roll-formed one piece construction. Exposed surfaces have satin finish. Edges and corners are burr free. All glazed mirrors are warranted against silver spoilage for 15 years. Filler: Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 3mm total layer thickness.


INSTALLATION
Install H wall brackets level and plumb per diagram location using ONLY No. 10 pan head screws (supplied by others). Hang mirror on brackets and tighten locking screw at bottom (note: this screw should be started prior to hanging mirror on wall brackets). For mounting height standards refer to current Building Code of Australia for able bodied and/or disabled use


* * IMPORTANT NOTE * *
We strongly encourage that you purchase insurance with any order including a mirror to cover any damage that may occur during transit. Should you choose not to take out insurance, we will not accept responsibility for damaged goods.




Code Size Dimensions Weight Colours
10-0620-V1830 460mm W x 760mm H 0.00 (kgs) Satin Stainless Steel Frame
10-0620-V1836 460mm W x 910mm H 0.00 (kgs) Satin Stainless Steel Frame
10-0620-V2436 610mm W x 910mm H 0.00 (kgs) Satin Stainless Steel Frame

Product Size, Colour and Price Options

Size Available Colours Our Price $
460mm W x 760mm H Satin Stainless Steel Frame
 $292.62
460mm W x 910mm H Satin Stainless Steel Frame
 $338.94
610mm W x 910mm H Satin Stainless Steel Frame
 $431.72

Quantity


Select Size


Select Colour




Add Item to Cart
